IP Multiviewer
Software based video multiviewer, light and fast

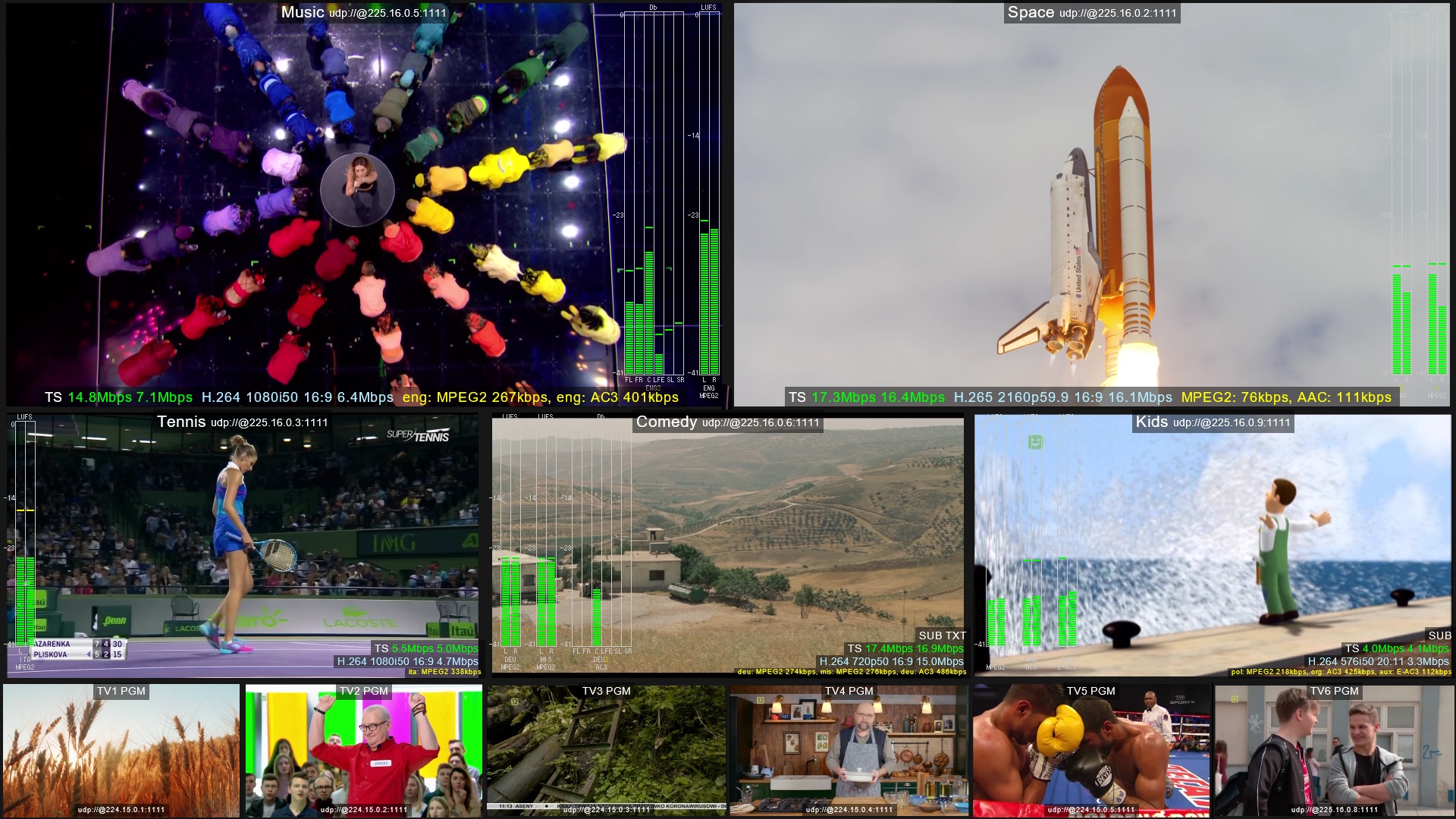

Stirlitz Media IP Multiviewer is a software based Multiviewer with highest video quality output to one or multiple physically connected and virtual HD/4K screens.

  • Runs on standard Windows platforms with NVIDIA GPUs
  • Scalable to thousands of sources, mix IP & SDI
  • Inputs: MPEG-TS UDP/RTP/SRT, NDI®, SDI, HDMI, OTT (including audio-only sources), AES67, ST 2110-20/30*
  • All broadcast audio and video codecs, up to UHD H.265
  • Display up to 64 HD or 16 UHD per 4K screen
  • Outputs up to 8 HDMI/DP screens per machine
  • Multiple full quality outputs over IP, including low latency browser playback, MPEG-TS, SRT and NDI
  • Audio playback with web control
  • Loudness, metadata, subtitles, CC & SCTE35
  • Basic monitoring included (signal, video/audio, subtitles/SCTE35)
  • Optional advanced TS & OTT monitoring
  • Visual, remote, audible & TTS alarms
  • Fully flexible and customizable layouts - allowing pixel-accurate designs
  • Web management and web API for management and alarms access
  • Round robin*, penalty box*, background monitoring*
Designed for remote work - with full quality low-latency IP output to web browser, web management and optional cloud support.

IP Multiviewer combined with IPMV Enterprise enables broadcasters, satellite platforms and cable TV operators to create a software based Master Control Room running on Windows OS servers - standalone, virtualized or in the cloud.

Watch Stirlitz Media IP Multiviewer presentation

Main features Stirlitz Media IP Multiviewer version 6.2:

  • Software based video multiviewer, light and fast
  • Works on generic servers or PCs with NVIDIA GPUs (Quadro or GTX, starting with Pascal architecture)
  • Supports large installations - hundreds of sources with integrated single-screen monitoring and alarms
  • Native IP support, ASI supported over gateway
  • Multi display support, up to 64 HD or 16 UHD per screen, up to 6 screens per machine
  • Support for multiple virtual displays with IP output
  • Live broadcast of low-delay, full quality output streams to web browser (with audio), MPEG-TS UDP/SRT (H.264 or H.265, with audio) and to NDI
  • 4K/UHD display support
  • Video codecs: AVC/H.2641 HEVC/H.2652, MPEG2
  • Audio codecs: AC3, AAC, AAC+, MPEG 1/2, E-AC3
  • IP Inputs: MPEG-TS over UDP/RTP/SRT
  • IP Inputs: HLS, MPEG-DASH, RTMP, RTSP
  • IP Inputs: NDI
  • IP Inputs - Audio only: MPEG-TS over UDP/RTP/SRT,
  • IP Inputs - Audio only: HLS, MPEG-DASH, RTMP, RTSP, Shoutcast/Icecast
  • IP Outputs: MPEG-TS over UDP and SRT (with embedded audio)
  • IP Outputs: directly to web browser over MSE (with embedded audio) - compatible with desktop and mobile browsers
  • IP Outputs: NDI
  • Inputs: SDI (up to 3G) and HDMI sources using DeckLink cards - up to 24 inputs per machine
  • Display of 2.0 and 5.1 audio levels/loudness
  • Audio playback with web control, including optional advanced mixing engine
  • Basic monitoring: input loss/transport degradation, basic MPEG-TS structure, video freeze or black/blue frame, audio below or above given levels, missing subtitles, missing SCTE35, PID traffic
  • TS Monitor: Advanced MPEG-TS monitoring and reporting - TR 101 290 level 1 and 2 (optional level 3)
  • HLS Monitor: Advanced HLS monitoring and reporting - all profiles: playlists verification; audio and video verification including segments structure, timecodes and codecs; delivery verification and logging
  • Alarms: visual, audible/TTS, SNMP, SMTP, logs, SQL database - with flexible conditions
  • Automatic archiving of MPEG-TS file on detected error or event
  • Display of DVB Subtitles, including concurrent display of multiple languages
  • Display of DVB Teletext Subtitles
  • Display of EIA 708 closed captions
  • Display of SCTE35 data
  • Flexible display layout with visual statistics and alarms

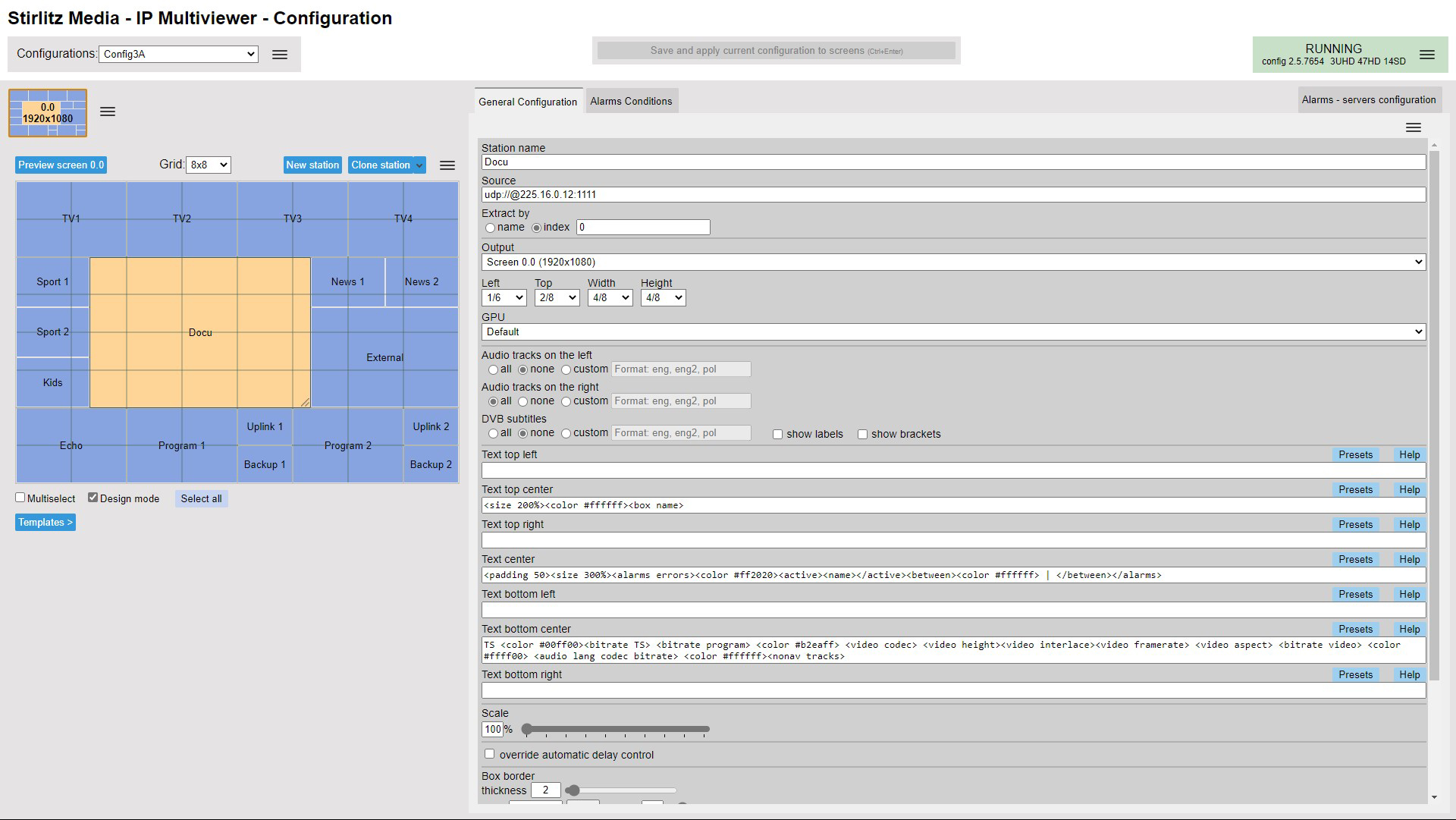

  • Web preview and management
  • Digital and analog clocks
  • Enterprise edition with centralized monitoring

1 AVC/H.264: hardware decoding: 4:2:0 8bit, 4:4:4 8bit; software decoding: 4:2:2 8bit, 4:2:0 10bit, 4:2:2 10bit
2 HEVC/H.265: hardware decoding: 4:2:0 8/10/12bit, 4:4:4 8/10/12bit

Available soon in Stirlitz Media IP Multiviewer 7.0

  • Support for SMPTE ST 2110-20/30 sources
  • Round-robin, Penalty box and background monitoring
  • Hardware decoding for 4:2:2 and 10/12bit H.264/H.265 video on compatible NVIDIA GPUs



Using Stirlitz Media IP Multiviewer Enterprise and Stirlitz Media Logger allows broadcasters, satellite platforms and cable TV to create a tailor-made master control room based on generic servers running Windows OS.

The Stirlitz Media team has deep knowledge of IP video and audio and we use it to provide our clients with custom solutions for their projects. All our product is software-only and available for testing at no charge.

The Stirlitz Media monitoring software suite includes:

  • Logger: capture, store and access multiple video, audio and metadata sources
  • IP Multiviewer: display one to many video sources in mosaics on one or more screens
  • IP Multiviewer Enterprise: software based MCR offering comprehensive live monitoring for satellite, cable, terrestrial and OTT
