Capture over network (no additional hardware required)
- MPEG TS over IP (UDP, RTP, SRT) – includes streams from MPEG2/H.264/H.265 encoders (HDMI, SDI, CVBS (composite) and receivers / gateways (DVB–S/S2/T/T2/C/C2, ISDB, ATSC, ASI)
- HLS, MPEG-DASH, RTSP, RTMP - H.264/H.265 OTT streams
- NDI
Capture other sources:
- DVB, ATSC, ISDB through gateways
- SDI, HDMI through encoders
- SDI, HDMI through Blackmagic Decklink (software and GPU-based H.264 encoding)
Sample configurations
- 6 HD channels, store each channel as TS with optional audio proxy (for browser playback compatibility):
– CPU: 4 cores (Intel Xeon or Core), 9 GB RAM
– CPU: Intel, specs are based on Xeon CPU 2.5GHz or faster, released in last 3 years
– scale up, every 6 extra channels: +2 cores (Intel Xeon or Core), +3 GB RAM - 12 HD channels, store each channel as TS with optional audio proxy (for browser playback compatibility):
– CPU: 6 cores (Intel Xeon or Core), 12 GB RAM
– CPU: Intel, specs are based on Xeon CPU 2.5GHz or faster, released in last 3 years
– scale up, every 6 extra channels: +2 cores (Intel Xeon or Core), +3 GB RAM - 50 HD channels, store each channel as TS with optional audio proxy (for browser playback compatibility):
– CPU: 19 cores (Intel Xeon or Core), 31 GB RAM
– CPU: Intel, specs are based on Xeon CPU 2.5GHz or faster, released in last 3 years
– scale up, every 6 extra channels: +2 cores (Intel Xeon or Core), +3 GB RAM - All configurations:
– Windows Server 2022, Windows Server 2019, Windows 10 Enterprise LTSC (also supported: Windows 10 Enterprise/Pro)
– Primary online storage: NTFS filesystem; local disks (recommended RAID 6 using enterprise class disks); NAS over iSCSI; SAN over Fiber or similar;
– Secondary online storage: Local or NAS/SAN – network over SMB protocol
– Storage & network performance requirement: on request

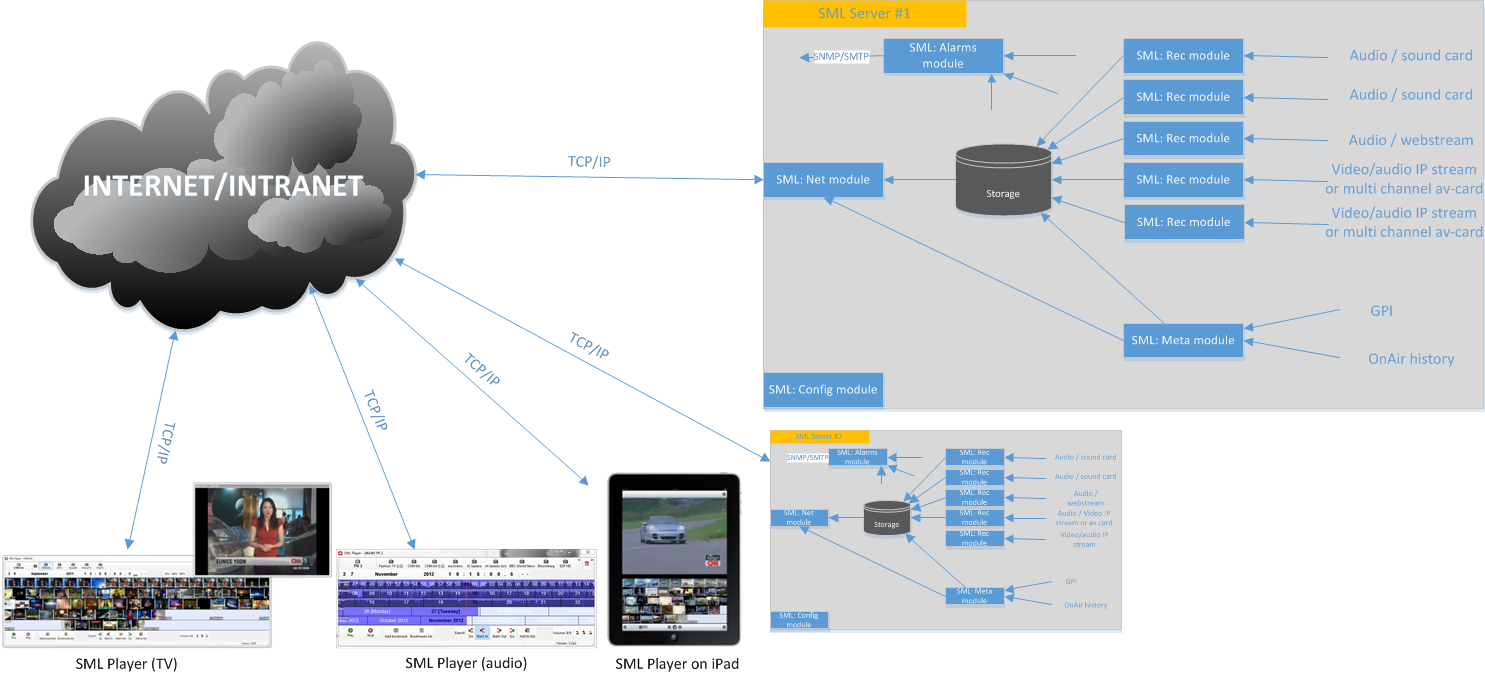

SML – scheme
Stirlitz Media Logger – scheme
